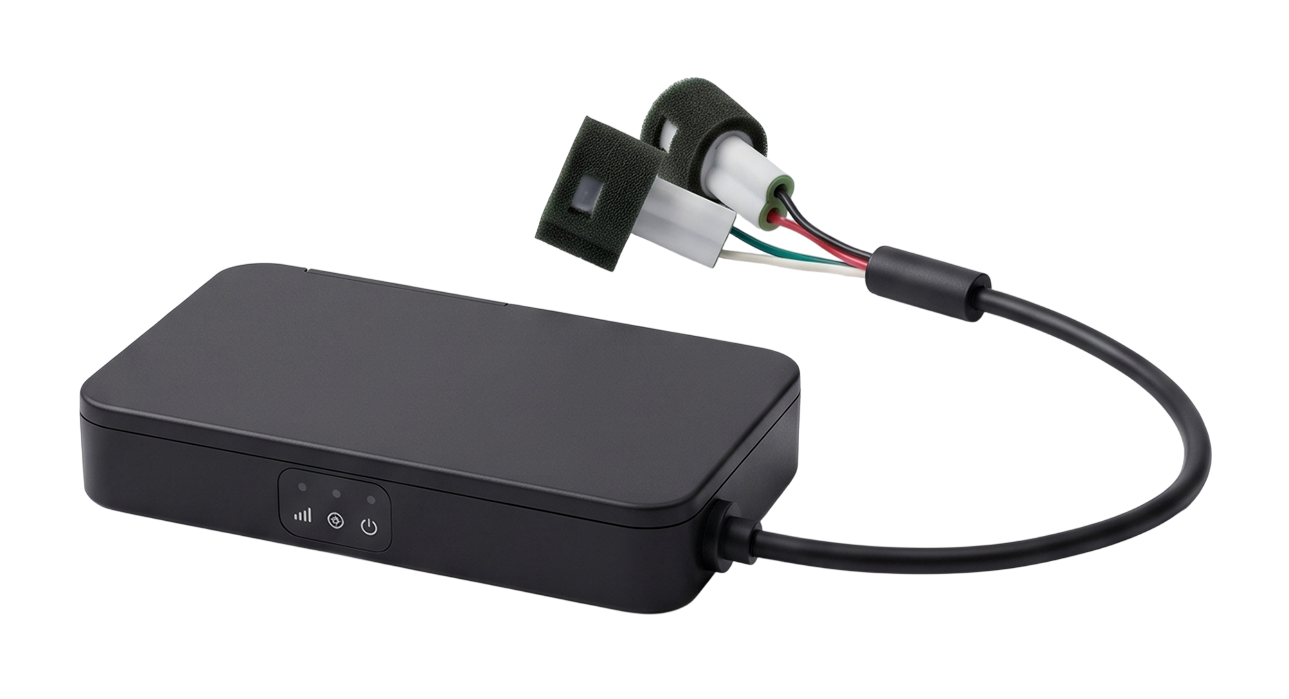

KartaDongle
Designed by Grabtaxi Holdings Pte. Ltd,
Address: 3 Media Cl, Singapore 138498
Assembled by Suga Electronics Limited, China
Product Overview
KartaDongle is a smart IoT device installed on vehicles that provide advanced positioning tracking, accurate safety telematics surveillance and fleet lifecycle management through multi sensors such as GNSS, 6-axis IMU, and CAN Bus communication.
Detail specification
General specifications
| Product type | KartaDongle GD22 |
| Dimension(L*W*H) | 111*69*20mm |
| Weight | 173g (With cable) |
| Power supply | 12-24V DC, typical 0.2A |
| Backup battery | 3.7V, 200mAh, Lithium battery |
| Housing | Color: Black Material: PC+20%GF |
Technical specifications
| OBD | Support for all legislated OBD-II protocols: ISO 15765-4 (CAN) |
| 3G/4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40 WCDMA: B1/B5/B8 GSM: EGSM900/DCS1800 |
| WIFI | IEEE 802.11 b/g/n 1T1R Wi-Fi Frequency: 2.4GHz~2.4835GHz Maximum Power: <20 dBm |
| Bluetooth | Bluetooth V5.0 of 1, 2 and 3 Mbps Supports Bluetooth V5.0+EDR and Low Energy (BLE) Frequency: 2.402GHz ~ 2.480 GHz |
| GPS | L1 band: GPS/GLONASS/Galileo/BeiDou/QZSS/SBAS L5 band: GPS/Galileo/BeiDou/IRNSS Acquisition time 30s Position accuracy 1-3m, Max. 135 satellites tracking |
| Accelerometer | 3-axis, 16bit, Range ±16g, ODR: 12.5~ 1600 Hz |
| Gyroscope | 3-axis, 16bit, ±2000d/s, ODR 25~ 6400 Hz |
IO Ports
| Power supply | 2 Pin Connector Red color: DC 12V (+); Black color: Ground (-) |
| CAN BUS | 2 Pin Connector Green color: CAN H (+); White color: CAN L (-) |
| SIM | NANO SIM |
| Status LEDS | 3 green LEDs (working status/GPS status/4G status) |
Environmental
| Operation temperature and humidity | 5~70 °C, 95% without condensation |
| Storage temperature and humidity | -20~80 °C, 100% without condensation |
| Protection | IP66 |
Compliance and certification
| Directive compliance | Directive 2014/53/EU |
| Standard compliance | EN IEC 62311:2020 EN IEC 62368-1:2020+A11:2020 EN 301 489-1 V2.2.3 Final draft EN 301 489-3 V2.2.0 EN 301 489-17 V3.2.4 Draft EN 301 489-19 V2.2.0 EN 301 489-52 V1.2.1 EN 300 328 V2.2.2 EN 303 413 V1.1.1 EN 301 511 V12.5.1 EN 301 908-1 V13.1.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.1.1 ETSI TS 134 121-1 V12.1.0 |
| ROHS | Directive 2011/65/EU Annex II amending Annex (EU)2015/863 |
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
